Please pay attention to the innovations of the MID directive and the associated conversion to direct measurement.

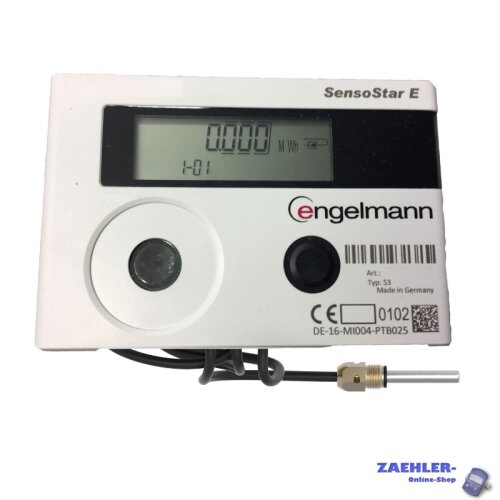

This device is suitable for a heating capacity of 25 KW with its nominal flow of 1,5 m³/h.
(Sealing rings and seal are included in all counters)
nominal flow Qp: 1,5 m³/h
maximum flow Qs: 3,0 m³/h
nominal pressure: 16 bar
installation position: return line
diameter of sensor: 5,2 mm
length of sensor cable: 1,5 m
starting values: horizontal und vertikal 7 l/h
temperature range: 25 - 90 degree Celsius
connection thread: 3/4" inch external threads
length: 110 mm
